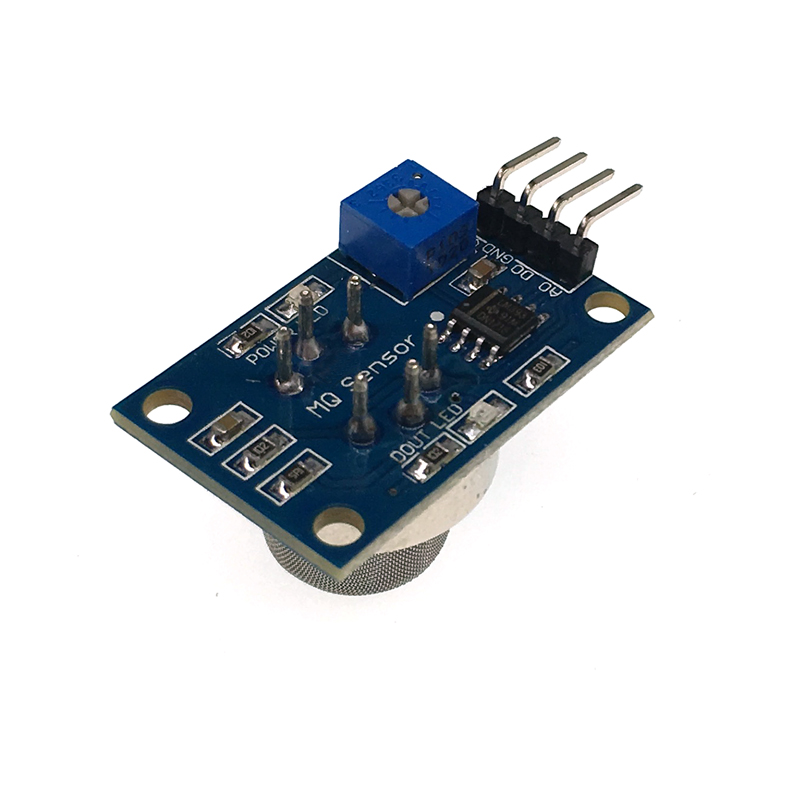

MP135/MP503 Air quality gas sensor
Product description
Mp135 / mp503 air quality gas sensor adopts multilayer thick film manufacturing process
Heaters and metal oxide semiconductors were fabricated on both sides of the micro alumina ceramic substrate
The conductive gas sensing layer is encapsulated in a metal shell. When there is detected gas in the ambient air
The higher the concentration of the gas, the higher the sensitivity
The higher the conductivity of the reactor. A simple circuit is used to change the conductivity
It is converted into output signal corresponding to gas concentration.
Heaters and metal oxide semiconductors were fabricated on both sides of the micro alumina ceramic substrate
The conductive gas sensing layer is encapsulated in a metal shell. When there is detected gas in the ambient air
The higher the concentration of the gas, the higher the sensitivity
The higher the conductivity of the reactor. A simple circuit is used to change the conductivity
It is converted into output signal corresponding to gas concentration.
Sensor features
This product is highly sensitive to alcohol, smoke, isobutane and formaldehyde; With response recovery
It has the advantages of fast recovery, low power consumption, simple detection circuit, good stability and long service life.
It has the advantages of fast recovery, low power consumption, simple detection circuit, good stability and long service life.
Main applications
It is mainly used in the detection of harmful gas in home environment and office, automatic exhaust device
Air purifier, etc
Air purifier, etc
