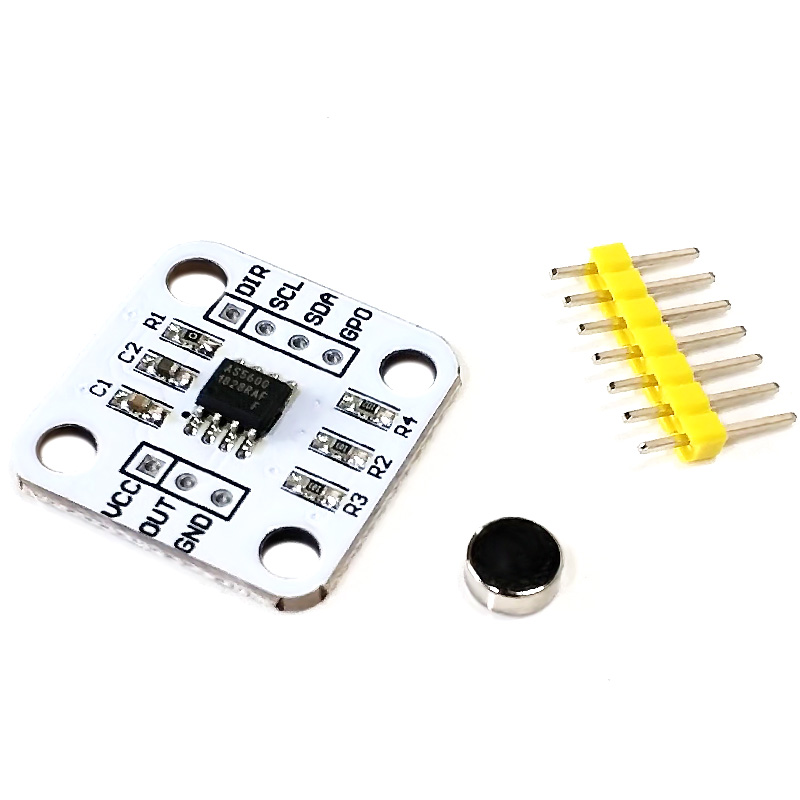

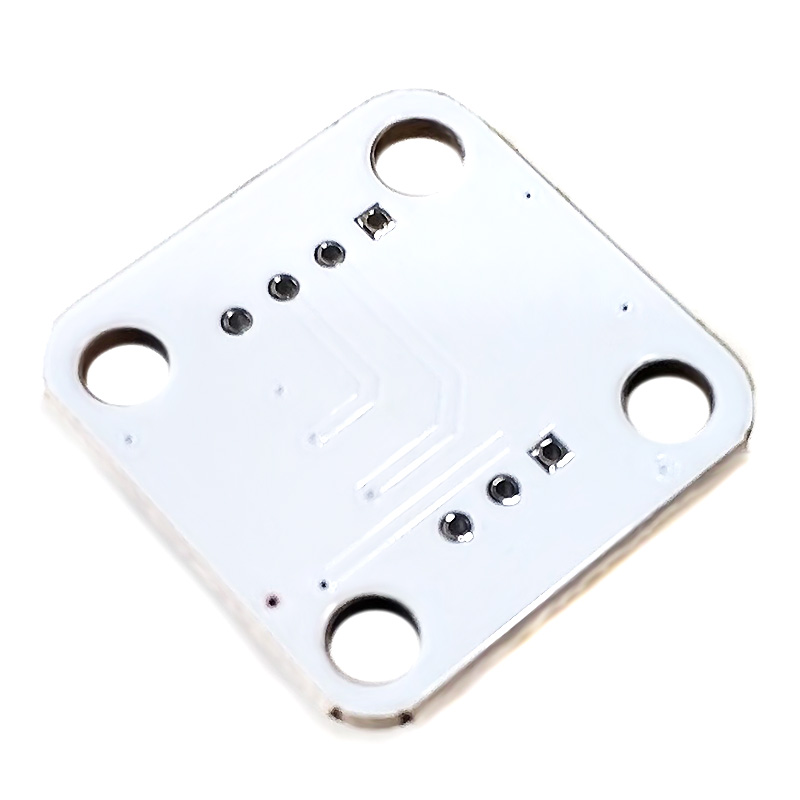

AS5600 high precision 12bit angle sensor module
item details:
Features:
-
Non-contact magnetic induction angle measurement module.
- High precision, multiple output modes: IIC, PWM, voltage, etc.
Electrical parameters:
|
VCC |
3.3V |
|
GND |
Power ground |
|
Out |
PWM/analog voltage output |
|
DIR |
Rotation direction (grounding=clockwise value increases; connected to VCC=clockwise value decreases) |
|
SCL |
IIC communication clock line |
|
SDA |
IIC communication data line |
|
GPO |
Mode selection (internal pull-up, ground = programming mode B) |
