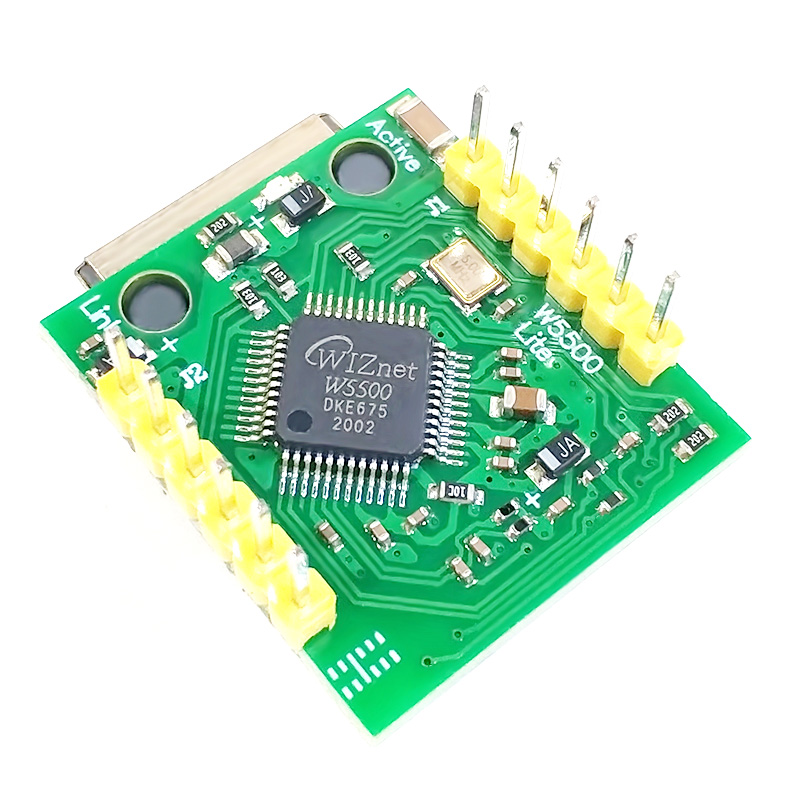

Note: This module is not SPI to Ethernet transparent transmission module, need to plug-in MCU, need users to understand the use of w5500 chip.
Product features:
High speed SPI interface of 80MHz
With built-in hardware tcpip protocol stack, users hardly need to master complex network protocol knowledge
Support up to 8 socket connections
Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols
Integrated data link layer, physical layer
Support wake-up after power failure
Support high speed serial peripheral interface (SPI mode 0 ~ 3)
Internal 32K byte transceiver cache
Embedded 10baset / 100BaseTX Ethernet physical layer (PHY)
Support auto negotiation (10 / 100 based full duplex / half duplex)
IP fragmentation is not supported
3 V working voltage, 5V withstand voltage of I / O signal port
LED status display (full duplex / half duplex, network connection, network speed, active status)
Ultra small pin package for embedded applications
Provide C application routines
Product features:
Power supply mode: 3.3V external power supply, current should be greater than 200mA
Control interface form: 3.3V TTL level, SPI interface; 2 * single row needle
PCB size (mm): 23 * 25 mm
Mechanical dimension (L * w * h): 28.5 * 23 * 24 mm
