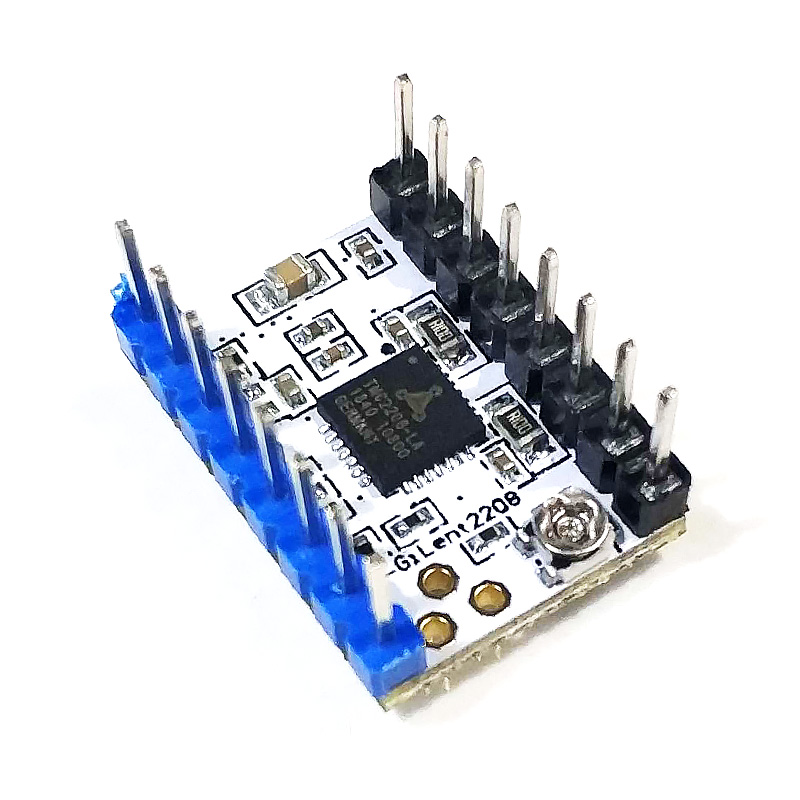

TMC2208 drive module, 1 piece

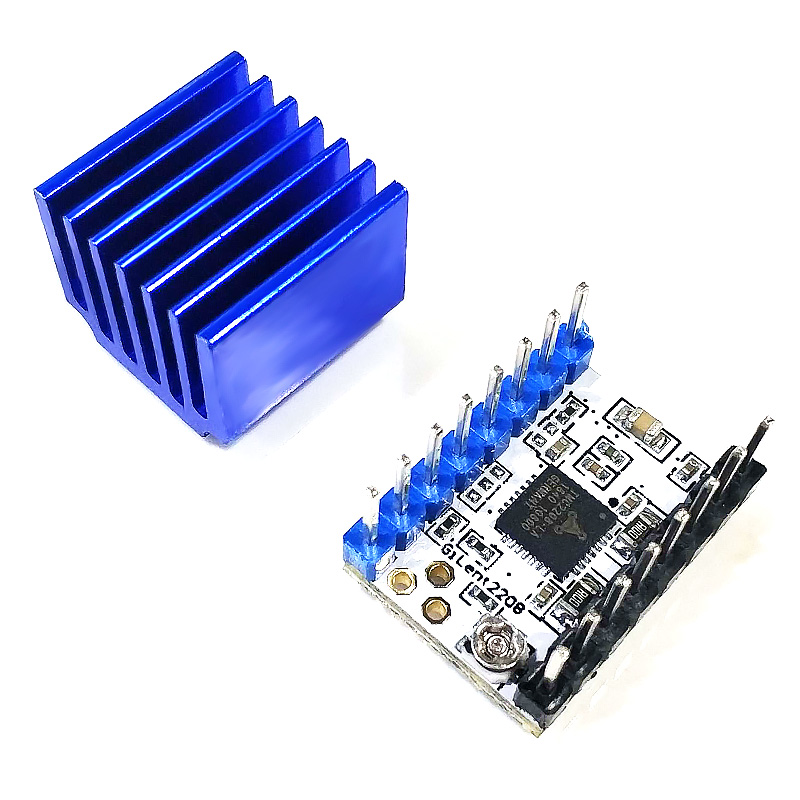

Heat sink, 1 piece
Potentiometer adjustment screwdriver, 1
Features:
1Two-phase stepper motor single-phase current 1.2A (peak value is 2.0A) motor work can be adjusted
2 Support two control modes: Step/DIR interface and SPI interface
3. Motor input voltage range: 4.75-36V
4. The input voltage of the logic interface is: 3-5V
5 is subdivided into 256
6·Combining efficiency and motor torque for noise-free operation
7 High-precision sensorless motor load detection
8. Reduce energy consumption by 75%
9, high load drive without losing step
TMC2208 single-axis stepper motor driver chip, power tube built-in drive current 1.4A peak current 2A, voltage range
4.75V-36V, 256 subdivision; with patented technology spreadCycle™ high chopping frequency, dcStep™ locked rotor detection technology, coolStep™ current dynamic adjustment technology, can save 70% energy, StealthChop mute
Flexible microPlyer interpolation unit, the component can provide up to 256 microsteps/step resolution, even at pulse rate
Sine control can still be achieved in systems with limited rate; because stealthChop fine tone technology is widely used in 3D printing
Therefore, the design of these components is also compatible with the existing 3D printer electronics, eliminating the costly cost of redesign
use. Both components have pulse/direction inputs and can be operated completely autonomously. Configuration is achieved through digital inputs.
It can replace the original TMC2100 with lower heat generation, which is especially suitable for the 3D printing market!!!
