Shipping list:

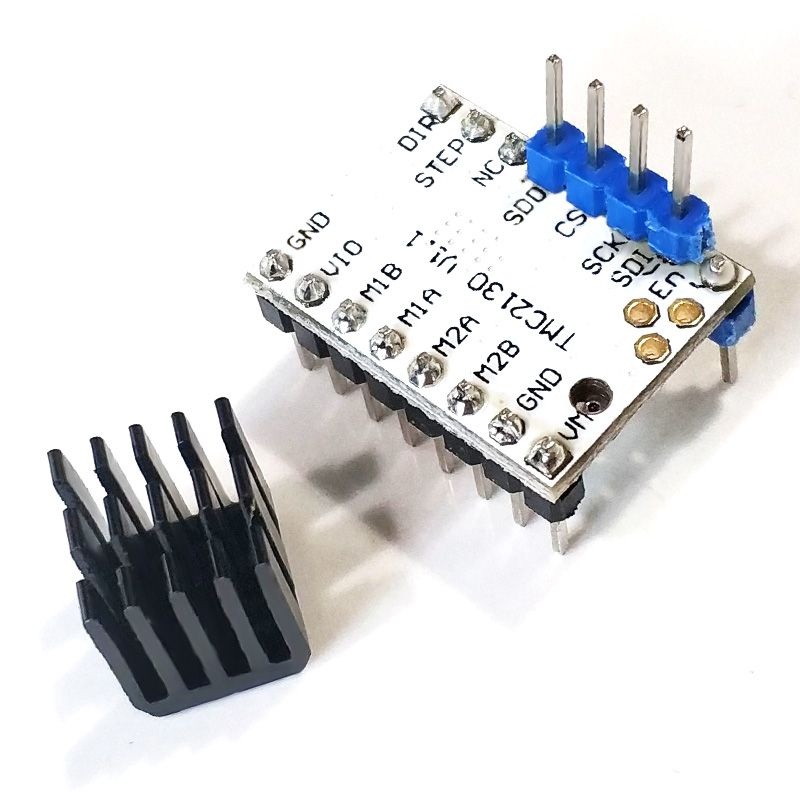

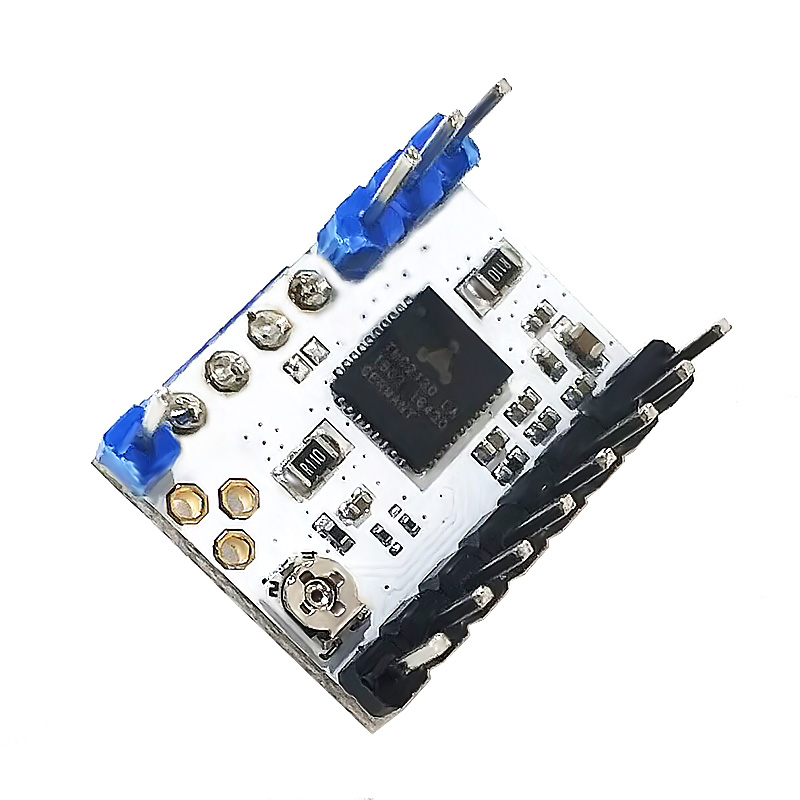

TMC2130 drive module, 1 piece
Heat sink, 1 piece
Potentiometer adjustment screwdriver, 1
TMC2130 drive module, 1 piece
Heat sink, 1 piece
Potentiometer adjustment screwdriver, 1
TMC2130 V1.1 instructions for use;
Features:
1 Two-phase stepper motor single-phase current 2A (peak 2.5A) motor working current can be adjusted
2 Support SPI interface control mode
3 Motor input voltage range: 4.75-46V
4 The logic interface input voltage is 3-5V
5 is subdivided into 256
6 Noise-free operation combined with maximum efficiency and best motor torque
7 High-precision sensorless motor load detection
8 Reduce energy consumption by 75%,
9 High load drive without losing step
Features:
1 Two-phase stepper motor single-phase current 2A (peak 2.5A) motor working current can be adjusted
2 Support SPI interface control mode
3 Motor input voltage range: 4.75-46V
4 The logic interface input voltage is 3-5V
5 is subdivided into 256
6 Noise-free operation combined with maximum efficiency and best motor torque
7 High-precision sensorless motor load detection
8 Reduce energy consumption by 75%,
9 High load drive without losing step
