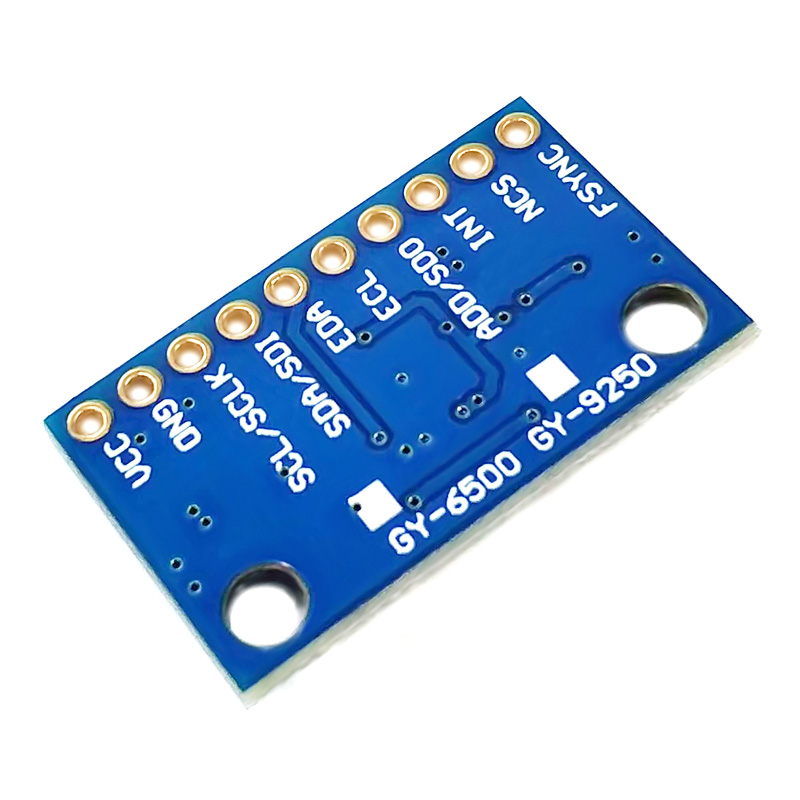

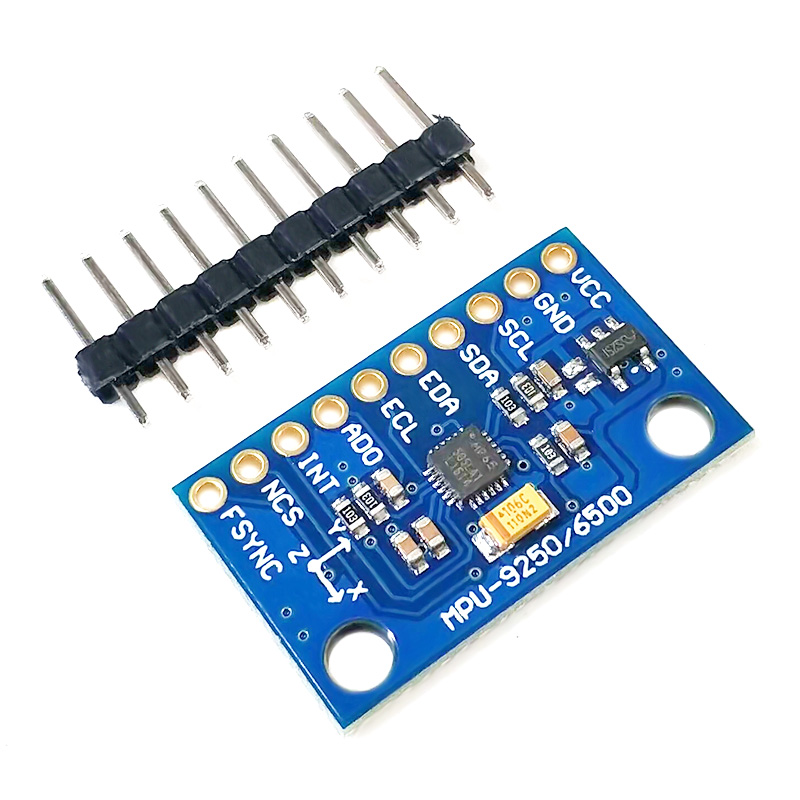

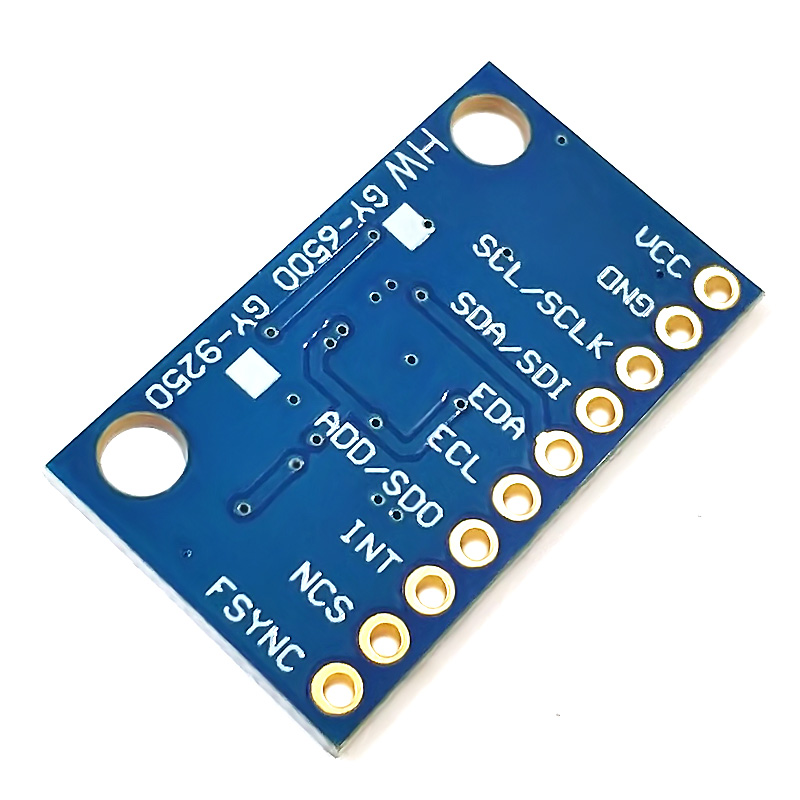

MPU-9250 module (three-axis gyroscope + three-axis acceleration + three-axis magnetic field)
Product model: GY-9250
Use chip: MPU-9250
Gyroscope range: ±250 500 1000 2000°/s
Acceleration range: ±2±4±8±16g
Magnetic field range: ±4800uT
Power supply: 3-5v (internal low dropout voltage regulator)
Communication method: standard IIC/SPI communication protocol (chip built-in 16bit AD converter, 16-bit data output)
Pin spacing: 2.54mm
Product size: 15mm*25mm adopts heavy gold PCB, machine welding process to ensure quality
MPU-6500 module (three-axis gyroscope + three-axis acceleration)
Module model: GY-6500
Use chip: MPU-6500
Power supply: 3-5v (internal low dropout voltage regulator)
Communication method: standard IIC/SPI communication protocol
Chip built-in 16bit AD converter, 16-bit data output
Gyroscope range: ±250 500 1000 2000 °/s
Acceleration range: ±2±4±8±16g
Using Immersion Gold PCB, machine welding process to ensure quality
Pin pitch 2.54mm
Module size 15mm*25mm
Use chip: MPU-9250
Gyroscope range: ±250 500 1000 2000°/s
Acceleration range: ±2±4±8±16g
Magnetic field range: ±4800uT
Power supply: 3-5v (internal low dropout voltage regulator)
Communication method: standard IIC/SPI communication protocol (chip built-in 16bit AD converter, 16-bit data output)
Pin spacing: 2.54mm
Product size: 15mm*25mm adopts heavy gold PCB, machine welding process to ensure quality
MPU-6500 module (three-axis gyroscope + three-axis acceleration)
Module model: GY-6500
Use chip: MPU-6500
Power supply: 3-5v (internal low dropout voltage regulator)
Communication method: standard IIC/SPI communication protocol
Chip built-in 16bit AD converter, 16-bit data output
Gyroscope range: ±250 500 1000 2000 °/s
Acceleration range: ±2±4±8±16g
Using Immersion Gold PCB, machine welding process to ensure quality
Pin pitch 2.54mm
Module size 15mm*25mm
Download link:https://pan.baidu.com/s/1i7ivLxrzK2oRvp6u_GKM8A
