[delivery list]

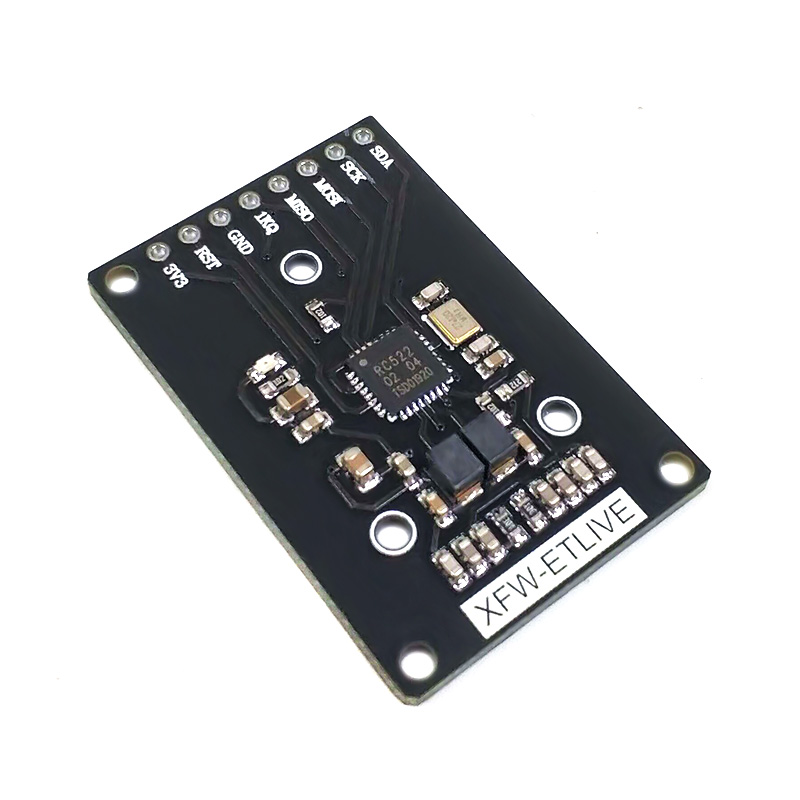

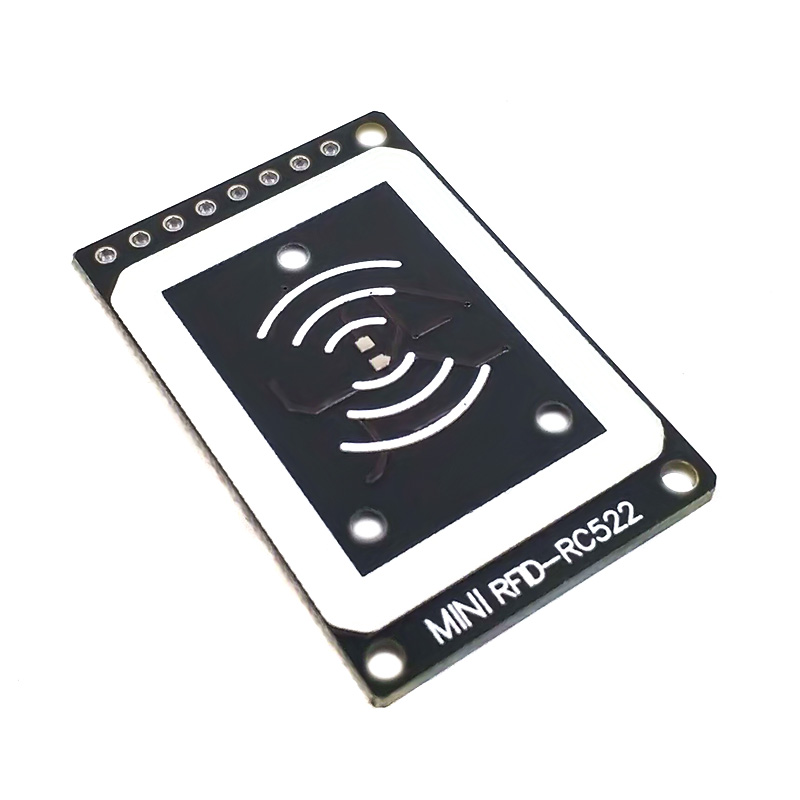

1. One rc522 Mini module;
2. One standard S50 blank card;
3. One S50 special-shaped card (key ring shape as shown in the figure);
4. One straight row pin and one curved row pin respectively;
Introduction to rc522 chip]
MF rc522 is a highly integrated read-write card chip used in 13.56MHz contactless communication. It is a low-voltage, low-cost, small size contactless read-write card chip for "three meters" application. It is a good choice for the research and development of intelligent instruments and portable handheld devices. MF rc522 fully integrates all kinds of passive non-contact communication modes and protocols at 13.56MHz by using advanced modulation and demodulation concepts. Support 14443a compatible transponder signal. The digital part processes iso14443a frame and error detection. In addition, it also supports fast crypto1 encryption algorithm to verify Mifare series products. Mfrc522 supports higher speed contactless communication of Mifare series, with bidirectional data transmission rate up to 424kbit / s. As a new member of 13.56MHz high integration read-write card family, MF rc522 has many similarities with MF RC500 and MF rc530, but also has many characteristics and differences. It uses SPI mode to communicate with the host computer, which is helpful to reduce the wiring, reduce the volume of PCB board and reduce the cost.
【RFID模块简介】
MF522-MINI模块采用RC522芯片设计读卡电路，模块工作在13.56MHz频率，符合ISO14443A标准，可支持Mifare1 S50、Mifare1 S70、Mifare Light、Mifare UltraLight、Mifare Pro。适用于设备开发、读卡器开发等高级应用的用户、需要进行射频卡终端设计/生产的用户。本模块可直接装入各种读卡器模具。模块采用电压为3.3V,通过SPI接口简单的几条线就可以直接与用户任何CPU主板相连接通信,可以保证模块稳定可靠的工作、读卡距离远；模块具有易用、高可靠、体积小等特点，可帮助客户方便、快捷的将非接触卡应用到系统中。
Brief introduction to electrical parameters
Working current: 13-26ma / DC 3.3V
Idle current: 10-13ma / DC 3.3V
Sleep current: < 80ua
Peak current: < 30mA
Working frequency: 13.56MHz
Supported card types: Mifare1 S50, Mifare1 S70, Mifare ultralight, Mifare pro, Mifare desfire
Product physical characteristics: size: 37.5mm × 33mm
Working temperature: 20-80 ℃
Ambient storage temperature: - 40-85 ℃
Relative humidity: 5% - 95%
