Delivery list
Clrc663 full protocol NFC module: 1
S50 white card, 1
S50 keychain, 1
8p row needle, 2

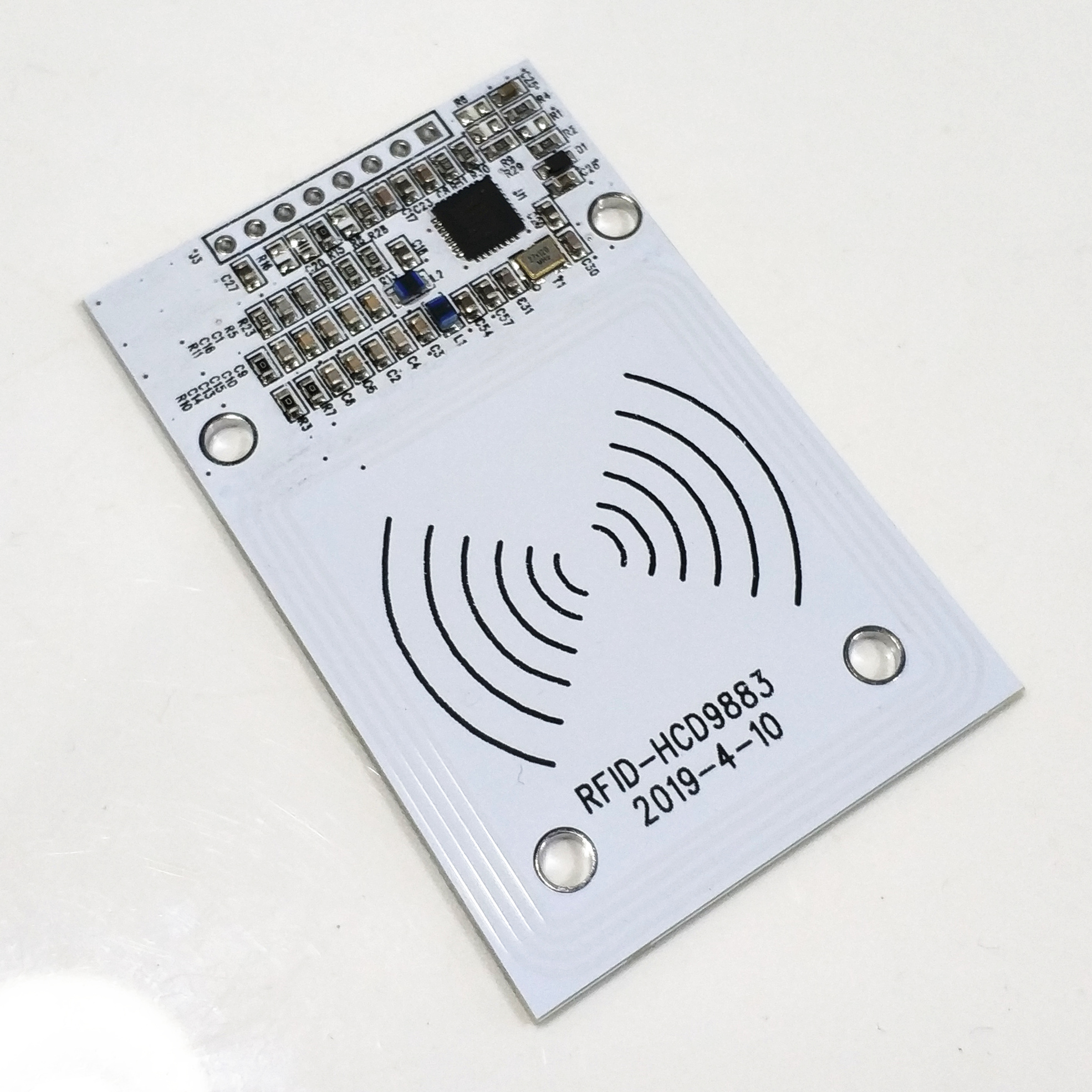

A NXP based clrc663 chip R & D and production for the verification of basic NFC function development board! Clrc663 development board has powerful functions, supports various card types, and supports full protocol.
Module parameters:
Model: clrc663 full protocol NFC card reading module (13.56MHz full protocol)
Communication protocol: SPI
Product size: 60mm * 39mm
Power supply voltage: 3.3-5v
Card reading distance: 0-7cm
Working current: 50mA, idle current: < 10mA
Support card protocol: typea / b 15693 felica, second generation certificate, UnionPay card, compatible with all NXP smart card products
