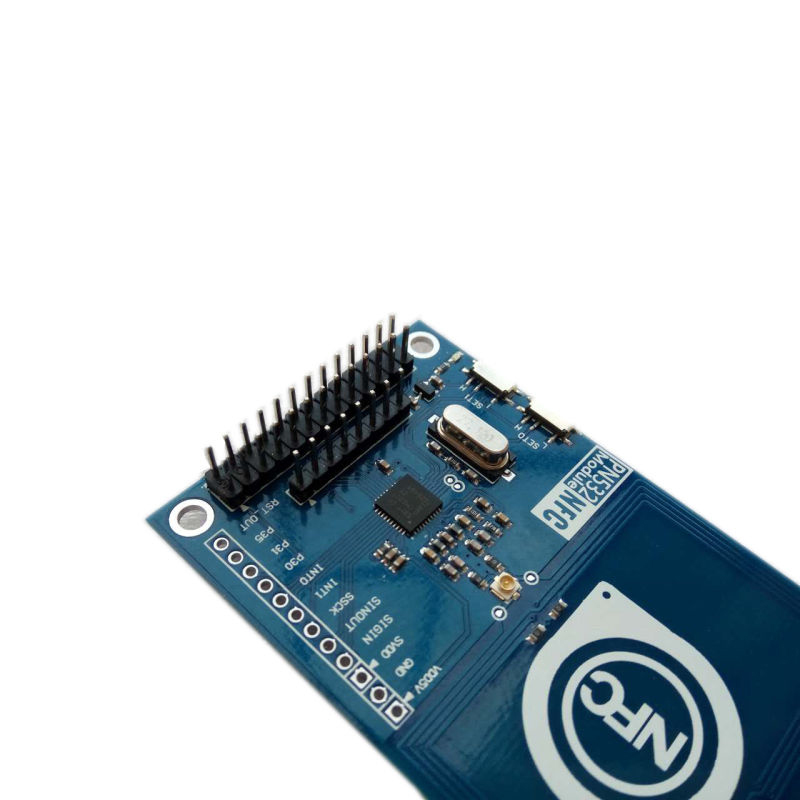

Itead pn532 NFC module, as its name implies, is based on pn532 chip, used for 13.56MHz near-field communication. The module is equipped with an onboard antenna, so there is no external antenna coil. It is compatible with SPI, IIC and UART interfaces for communication. With the development of Arduino and raspberry PI supported by NFC library, it is very convenient to use NFC products.

characteristic

• The longest effective communication distance is 5cm
  Support SPI, IIC, UART interface switching.
  It can be used in 13.56M contactless communication
  Compatible with iso14443 type A and B standards

规范

Board size: 79mm long ×  Width 48.3mm ×  11.3mm high with packing weight: 30g

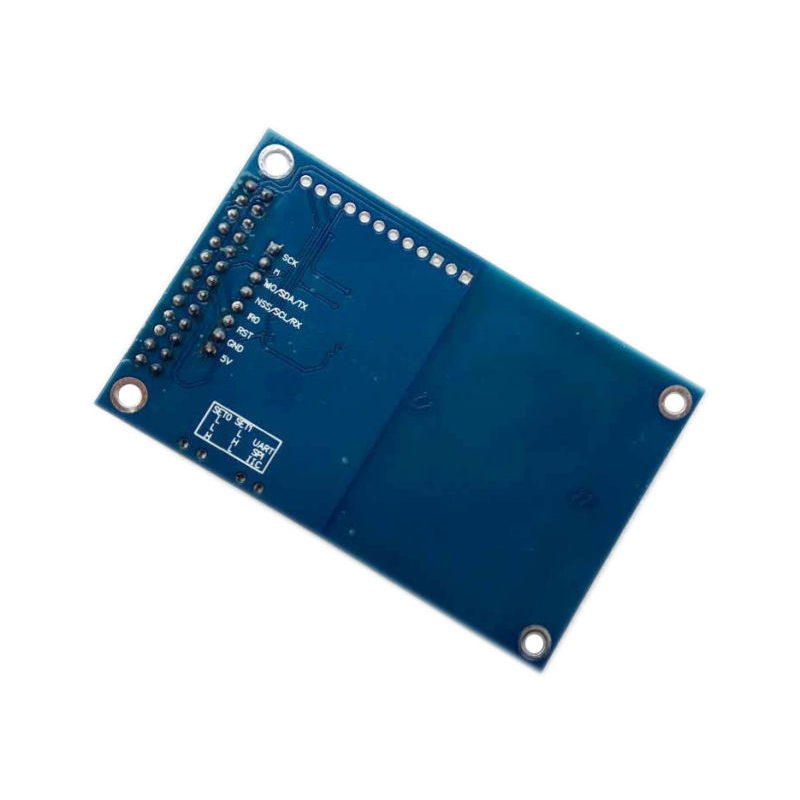

There are two sliding switches on the board to select the interface mode:
