Link: https://pan.baidu.com/s/1AXfgiJ3XNwt84QotMxpzYA
Extraction code: 0slh

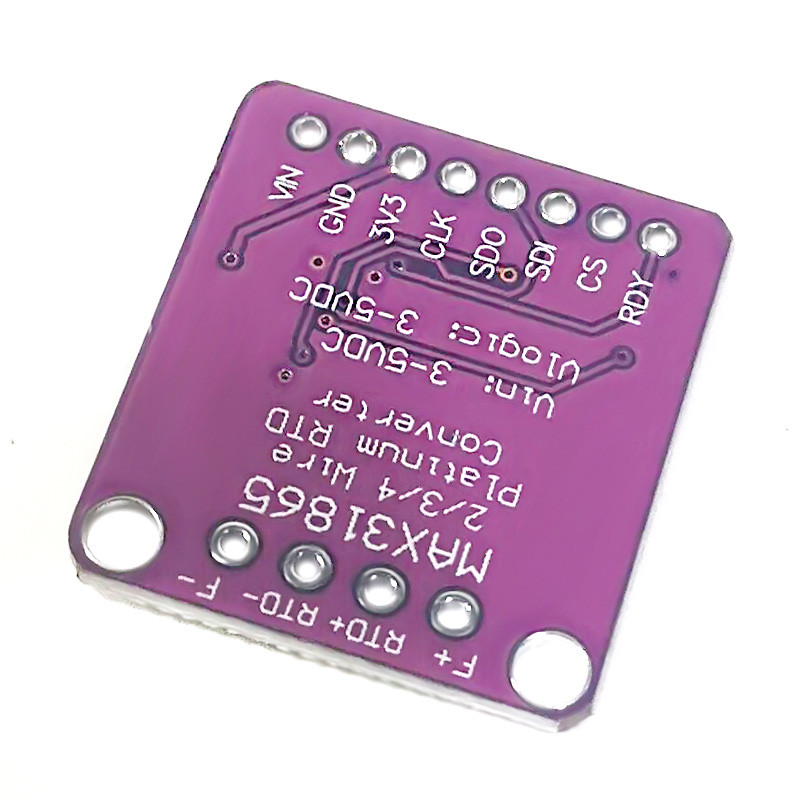

RTD platinum resistance digital converter
The default is PT100, and the resistance is 430 Ω. If the resistance is changed to 4300, it is connected to PT1000.
Support 100 Ω To 1K Ω( 0 ° C) platinum resistance RTD (PT100 to PT1000)
Conversion time: 21ms (Zui maximum)
15 bit ADC resolution; The nominal temperature resolution is 0.03125 ° C (varies with RTD nonlinearity)
The total accuracy is kept at 0.5 under the whole working condition ° C (0.05% full scale)
SPI compatible interface, compatible with 2-wire, 3-wire and 4-wire sensor connection
