Product overview:

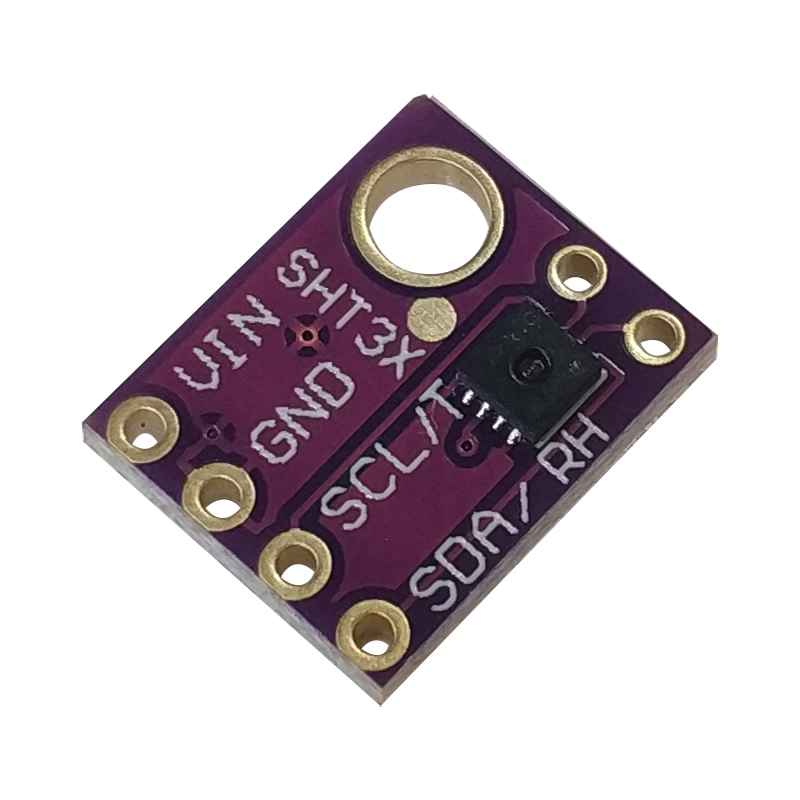

The new temperature and humidity sensor series sht3x promotes the sensor technology to a new level. Sht3x series includes low-cost version sht30, Standard Version sht31, I2C interface and wide working voltage range (2.4-5.5v)
Technical parameters:
1. Humidity measurement range: 0 ~ 100% RH
2. Humidity measurement accuracy: sht30 ± 3%RH; SHT31 ± 2%RH; SHT35 ± 1.5%RH;
3. Temperature measurement range: - 40 ~ 125 ℃
4. Temperature measurement accuracy: sht30 sht31 ± 0.3℃ SHT35 ± 0.2℃
5. Working voltage: 2.4 ~ 5.5VDC (wide voltage)
6. I2C interface output
7. Size: 1.25 mm * 1 mm
