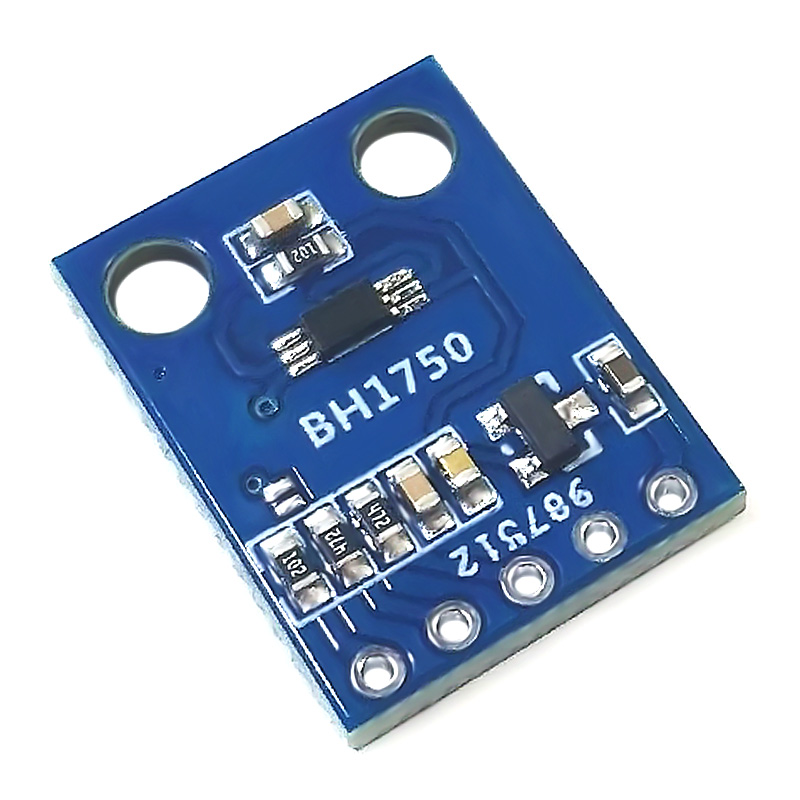

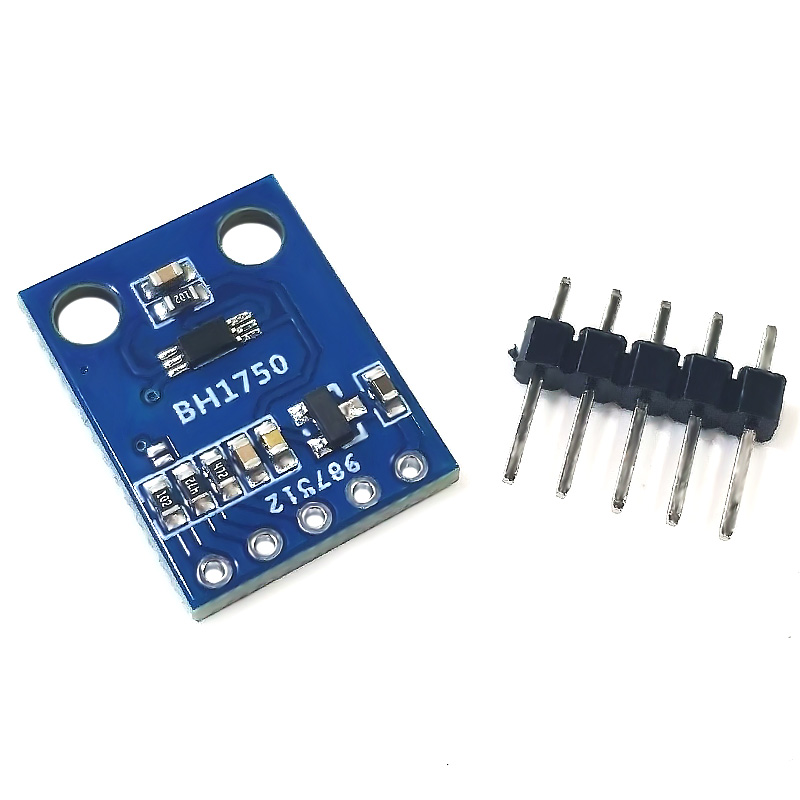

Digital light intensity detection
Model: gy-302
Size: 13.9mm x 18.5mm
Using Rohm original bh1750fvi chip
Power supply: 3-5v
Data range: 0-65535
The sensor has built-in 16bit AD converter
Direct digital output, omit complex calculation, omit calibration
Does not distinguish between ambient light sources
Spectral characteristics close to visual sensitivity
It can measure a wide range of brightness with high accuracy of 1 lux

Provide STC 51 test code
Provide C8051F340 test code
Provide AVR M16 test code
Provide Arduino test code
